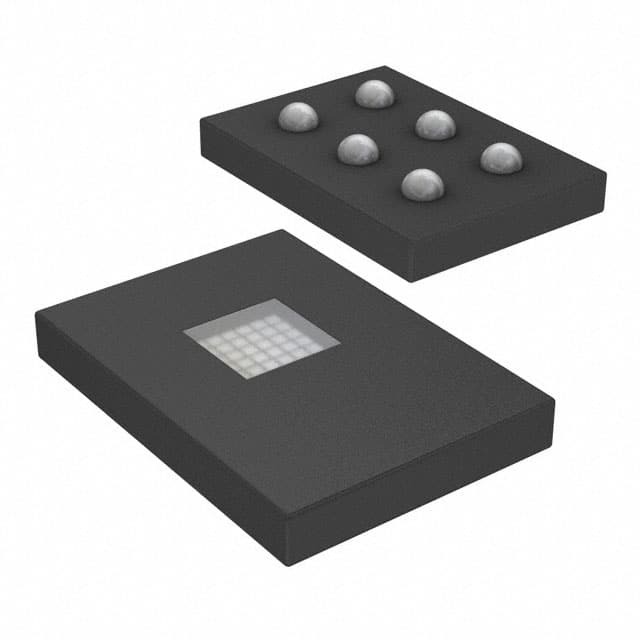

TSL2584TSV

SKU: 135592

Manufacturer: ams AG

Light to Digital Ambient Light Sensor Digital 3V Medical 6-Pin TSV T/R

4360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	NRND
Automotive	No
PPAP	No
Sensor Type	Light to Digital
Maximum Clock Frequency (kHz)	400
Maximum Fall Time (ns)	300
Maximum Rise Time (ns)	300
Interface Type	Serial (2-Wire, I2C)
Output Type	Digital
Low Level Output Voltage (V)	0.6
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Typical Supply Current (uA)	175
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TSV
Pin Count	6
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.22
Package Length	1.66
Package Width	1.15
PCB changed	6
