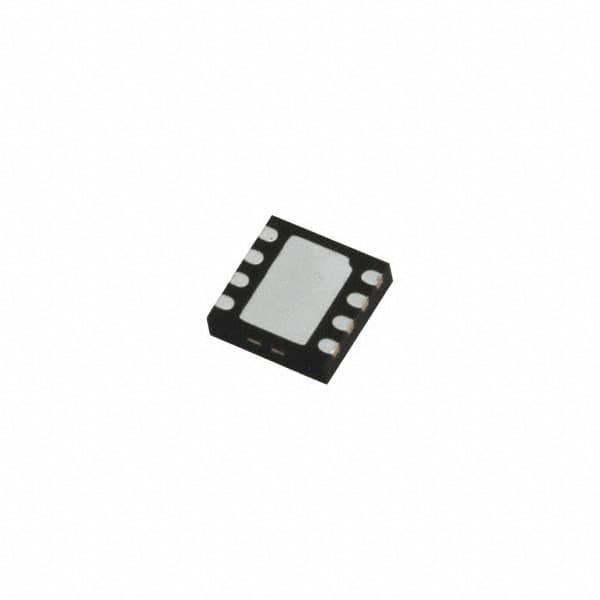

AS1364-BTDT-45

SKU: 152379

Manufacturer: ams AG

LDO Regulator Pos 4.5V 1A 8-Pin TDFN EP T/R

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.75
Output Type	Fixed
Output Voltage (V)	4.5
Maximum Output Current (A)	1(Min)
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.085@250mA
Line Regulation	0.125%/V
Load Regulation	0.001%/mA
Junction to Ambient	36.3°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TDFN EP
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	8
