PTC10LV10-501A2020

SKU: 94432

Manufacturer: Amphenol

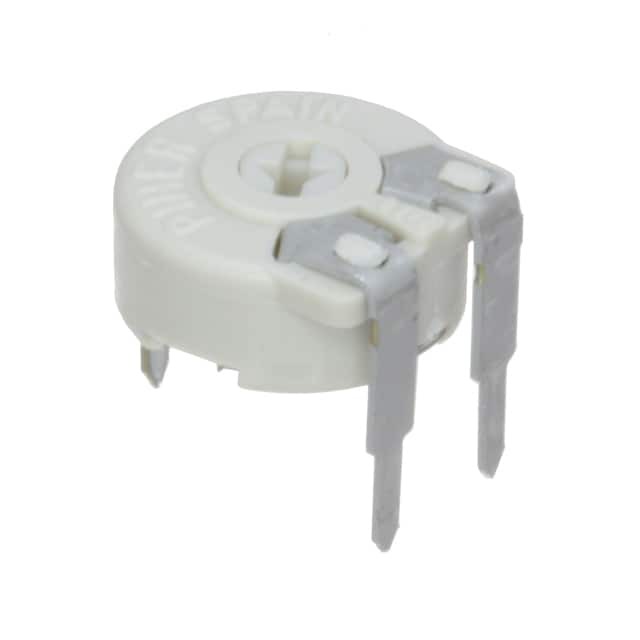

RES POT 500Ohm 20% 1/3W 10mm Thru-Hole Box

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.50
Automotive	Unknown
PPAP	Unknown
Type	Trimmer
Resistance Value (Ohm)	500
Tolerance	20%
Voltage Rating-Max (V)	200
Power Rating (W)	0.33 (1/3)
Technology	Cermet
Operating Temperature-Min	-40
Operating Temperature-Max	90
Temperature Coefficient (ppm/°C)	±100
Linear or Logarithmic	Lin
Terminal Form	Pin
Positions of Adjustment	Top
Number of Turns (Turns)	1(Elec)
Number of Elements	1
Electrical Rotation (°)	220
Number of Electrical Turns (Turns)	1
Mechanical Rotation (°)	235
Mechanical Rotational Life (Cycles)	1000
Number of Mechanical Turns (Turns)	1
Packing Method	Box
Length (mm)	10.3
