NPC-1210-015A-3-S

SKU: 122765

Manufacturer: Amphenol

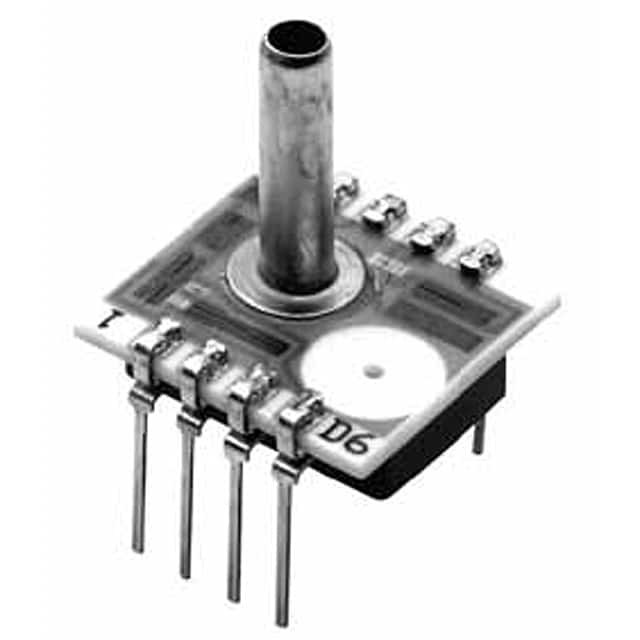

Board Mount Pressure Sensor 0psi to 15psi Absolute 8-Pin DIP Module

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	9026.20.40.00
Automotive	No
PPAP	No
Device Pressure Type	Absolute
Operating Pressure Range	0psi to 15psi
Maximum Overload Pressure	45psi
Equivalent Overload Pressure Range (psi)	20 to 100
Accuracy (%)	±0.5
Typical Full Scale Output	0.1V
Maximum Supply Current (mA)	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Media	Gas
Original Package	DIP Module
Pin Count	8
Terminal Form	Through Hole
Package Height	12.5
Package Length	15.24
Package Width	15.24
