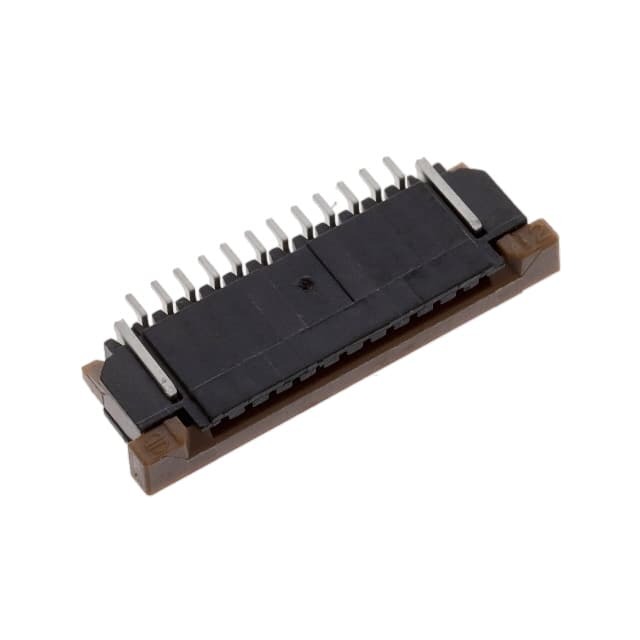

SFW12R-3STE1LF

SKU: 35476

Manufacturer: Amphenol ICC

1.00mm Flex Connector, SFW-R series, 12 Position, Down Side Contact, Side Entry Surface Mount ZIF Connector, Lead Free, with Cable Lock

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	FFC/FPC Connector
Number of Contacts	12
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	1
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	100VAC
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	20
Packing Method	Tape and Reel
Length (mm)	17.8
Depth (mm)	6.5
Height (mm)	2.7
