98424-G52-04ALF

SKU: 31527

Manufacturer: Amphenol ICC

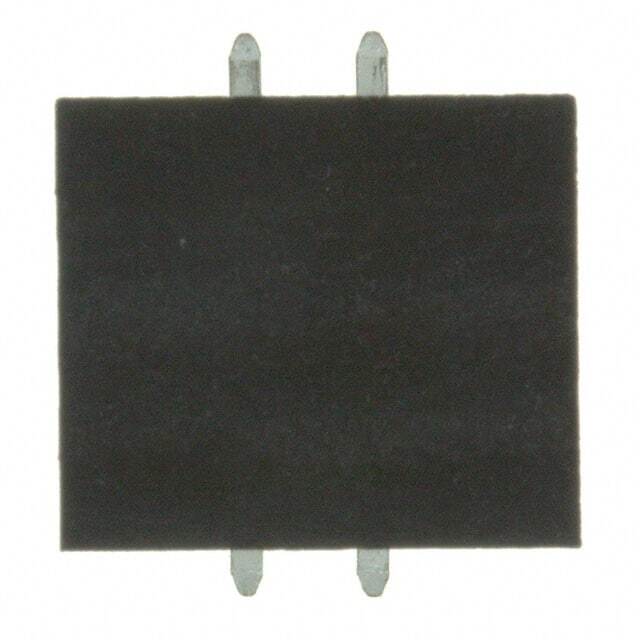

Minitek®, Board/Wire to Board Connectors, Shrouded Header - Surface Mount - Double row - 4 Positions - 2mm (0.079inch) - Vertical

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	4
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Polarization Type	Center Slot
Row Spacing (mm)	2
Current Rating-Max(A)	2/Contact
Voltage Rating-Max	200VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Length (mm)	6
Depth (mm)	9
Height (mm)	6.2
Tradename	Minitek®
