87606-309LF

SKU: 29898

Manufacturer: Amphenol ICC

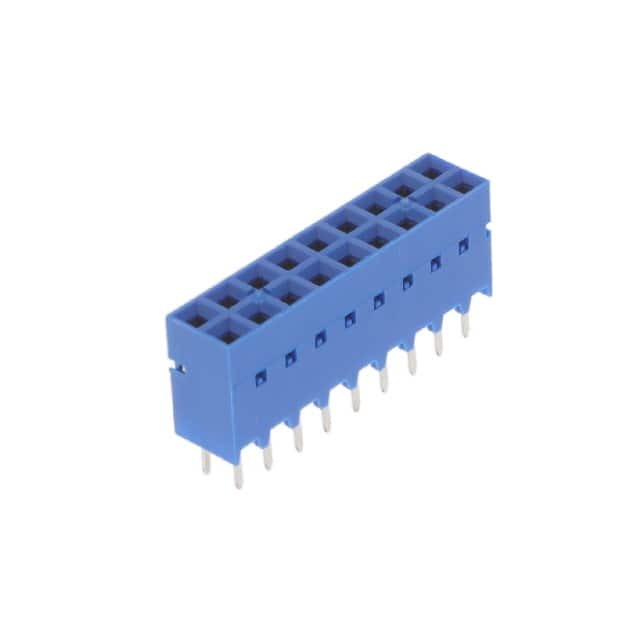

Dubox®, Board To Board Connector, Receptacle, Vertical, Through Hole, Double Row, Top Entry, 18 Positions, 2.54mm (0.100in) Pitch

3620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Socket Strip
Gender	RCP
Number of Contacts	18
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	1000VAC
Insulation Resistance (MOhm)	100000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Tube
Length (mm)	22.78
Depth (mm)	5.08
Height (mm)	8.5
Tradename	Dubox®
