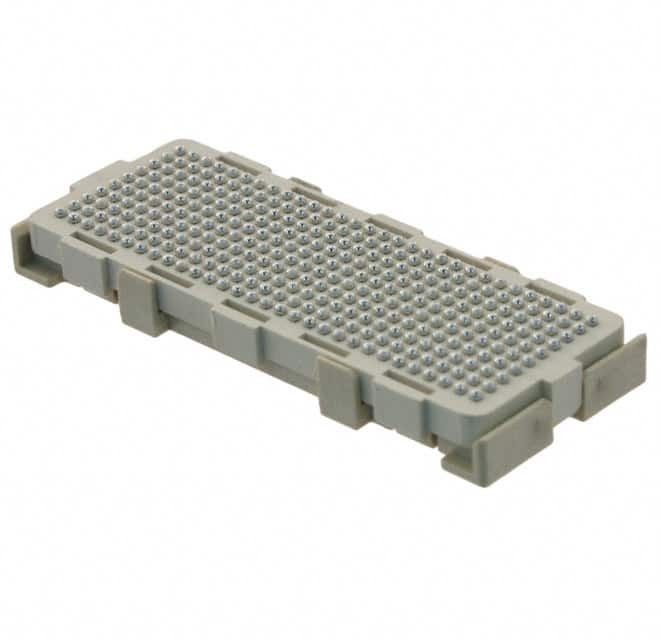

84501-101LF

SKU: 100549

Manufacturer: Amphenol ICC

84501-101LF Amphenol ICC Connector Header & PCB Receptacles Board to Board 300 Positions BGA Lead-free - Arrow.com

3940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Board to Board
Gender	RCP
Number of Contacts	300
Number of Rows	10
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Polarization Type	Center Key/Dual Key
Row Spacing (mm)	1.27
Current Rating-Max(A)	0.45/Contact
Voltage Rating-Max	200VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	35
Operating Temperature-Min	-40
Operating Temperature-Max	85
Mating Cycle (Cycles)	50
Packing Method	Tape and Reel
Product Weight (g)	5.888
Length (mm)	42.3
Depth (mm)	16.38
Height (mm)	3.89
Contact Plating Thickness	0.00076
