75867-107LF Amphenol ICC

75867-107LF

SKU: 31498

Manufacturer: Amphenol ICC

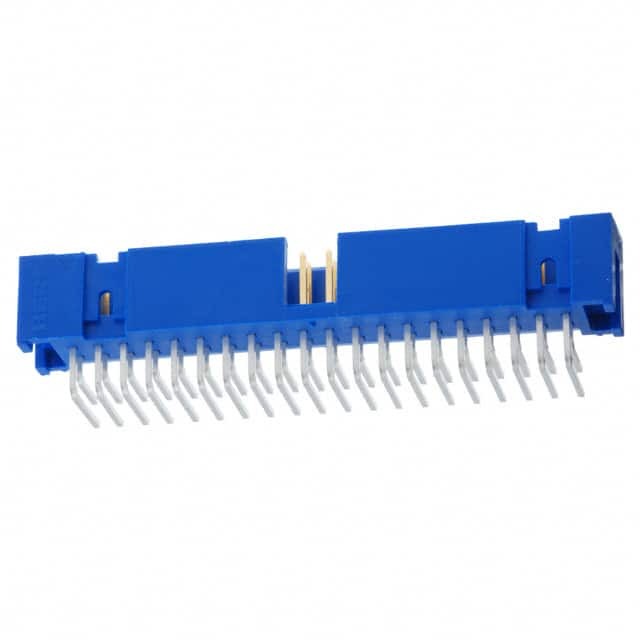

Quickie®, Wire to Board Connector, Double Row, 40 Positions, 2.54 mm (0.100in), Right Angle, Shrouded Header 0.76 um (30 uin) Gold or GXT™ Plating

Download sample

Request Free Samples

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	40
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Polarization Type	Center Slot
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	500VAC
Insulation Resistance (MOhm)	10000
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Tube
Length (mm)	58.01
Depth (mm)	14.22
Height (mm)	9.2
Tradename	Quickie®
Contact Plating Thickness	0.76um
Tail Length (mm)	3.05
