68021-206HLF Amphenol ICC

68021-206HLF

SKU: 59938

Manufacturer: Amphenol ICC

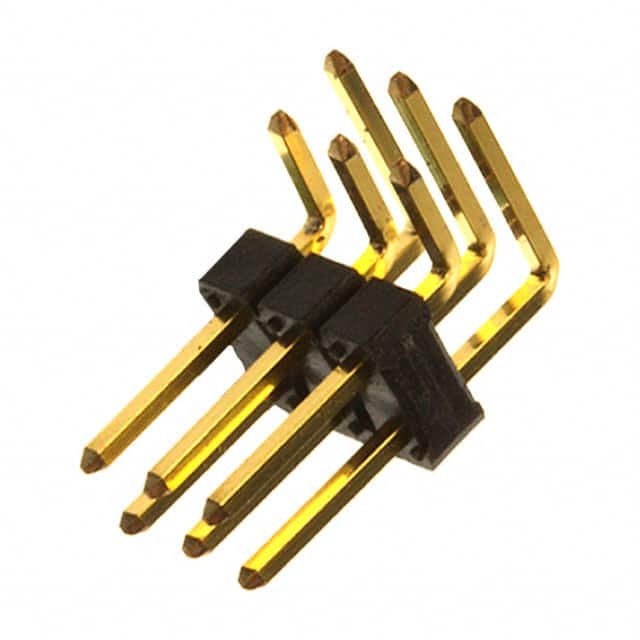

BergStik®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 6 Positions, 2.54 mm (0.100in) Pitch

Download sample

Request Free Samples

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8535.90.80.40
Automotive	No
PPAP	No
Type	Unshrouded Header
Gender	HDR
Number of Contacts	6
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	1500VAC
Insulation Resistance (MOhm)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Bulk
Length (mm)	7.62
Depth (mm)	12.76
Height (mm)	4.83
Tradename	BergStik®
Tail Length (mm)	3.05
