68000-404HLF

SKU: 157305

Manufacturer: Amphenol ICC

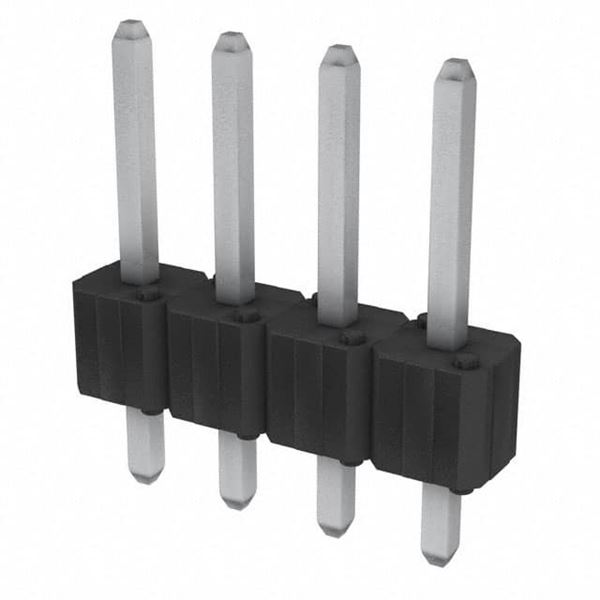

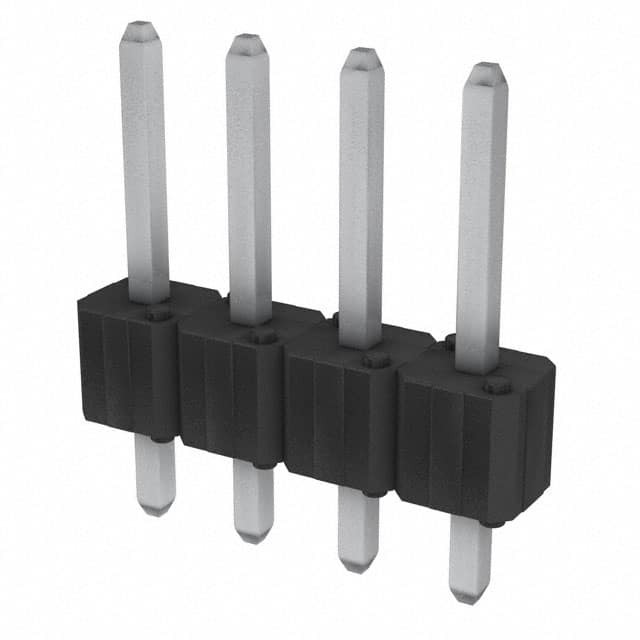

BergStik®, Board to Board connector, Unshrouded Header, Through Hole, Single Row, 4 Positions, 2.54 mm Pitch, Vertical, 5.84 mm (0.23 in.) Mating, 2.41 mm (0.095 in.) Tail

Download sample

Request Free Samples

3410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8535.90.80.40
Automotive	No
PPAP	No
Type	Unshrouded Header
Gender	HDR
Number of Contacts	4
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	1500VAC
Insulation Resistance (MOhm)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Bulk
Length (mm)	10.16
Depth (mm)	2.41
Height (mm)	8.38
Tradename	BergStik®
Contact Plating Thickness	2.54um
Tail Length (mm)	2.41
