65801-033LF

SKU: 80880

Manufacturer: Amphenol ICC

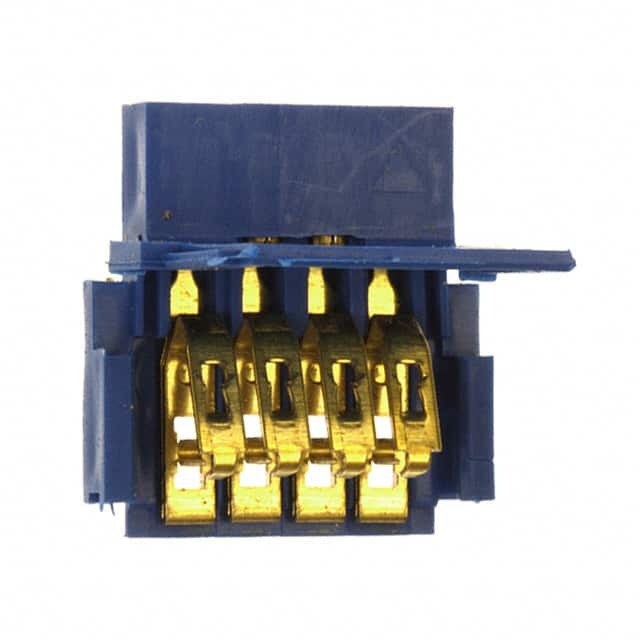

Clincher™ Flex Connectors, Receptacle Assembly, Single Row, 4 Positions, 2.54mm (.100in) Pitch

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
Automotive	No
PPAP	No
Type	FFC/FPC Connector
Number of Contacts	4
Number of Rows	1
Termination Method	IDT
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Contact Gender	RCP
Current Rating-Max(A)	2/Contact
Voltage Rating-Max	500VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-65
Operating Temperature-Max	105
Packing Method	Tray
Length (mm)	14.99
Depth (mm)	15.49
Height (mm)	2.54
Tradename	Clincher™
