65039-035LF Amphenol ICC

65039-035LF

SKU: 87991

Manufacturer: Amphenol ICC

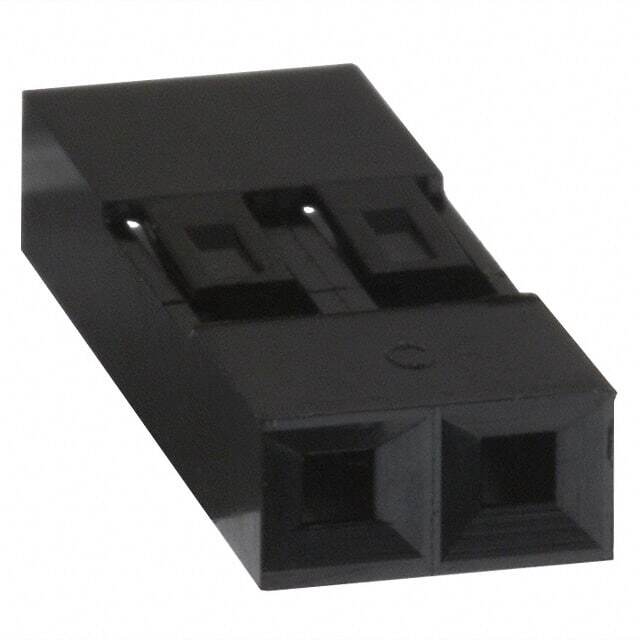

PV® Wire-to-Board Connector System, 2.54mm (0.1inch) Centerline Crimp-to-Wire PV Receptacle Housing, Single Row

Download sample

Request Free Samples

2380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.60.00
Automotive	No
PPAP	No
Type	Housing
Gender	RCP
Number of Contacts	2
Number of Rows	1
Termination Method	Crimp
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	1000VAC
Insulation Resistance (MOhm)	10000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	1000
Packing Method	Bag
Length (mm)	4.93
Depth (mm)	2.54
Height (mm)	13.85
Tradename	Mini-PV™
Keyed	No
