61083-103402LF

SKU: 22767

Manufacturer: Amphenol ICC

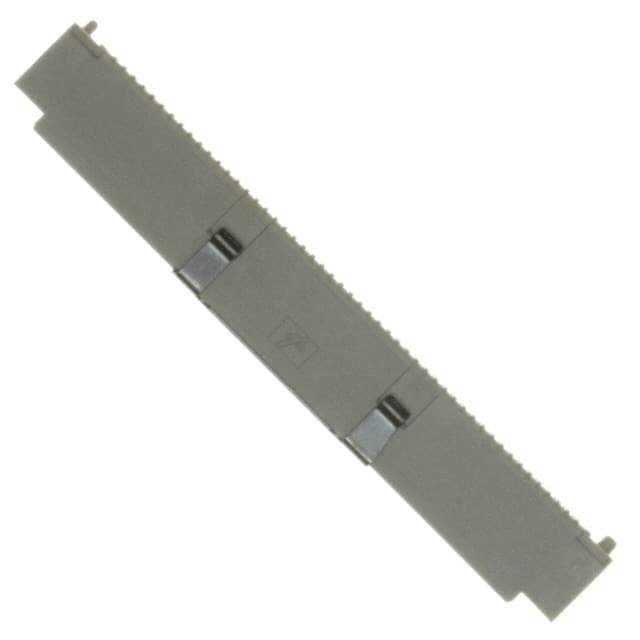

BergStak® 0.80mm Pitch, Mezzanine Connector, Vertical Header, Double Row, 100 Positions

3920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Fine Pitch Connector
Gender	PL
Number of Contacts	100
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Current Rating-Max(A)	0.8/Contact
Voltage Rating-Max	100VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Length (mm)	45.8
Depth (mm)	6
Height (mm)	6.7
Tradename	Bergstak®
