61082-103402LF

SKU: 150198

Manufacturer: Amphenol ICC

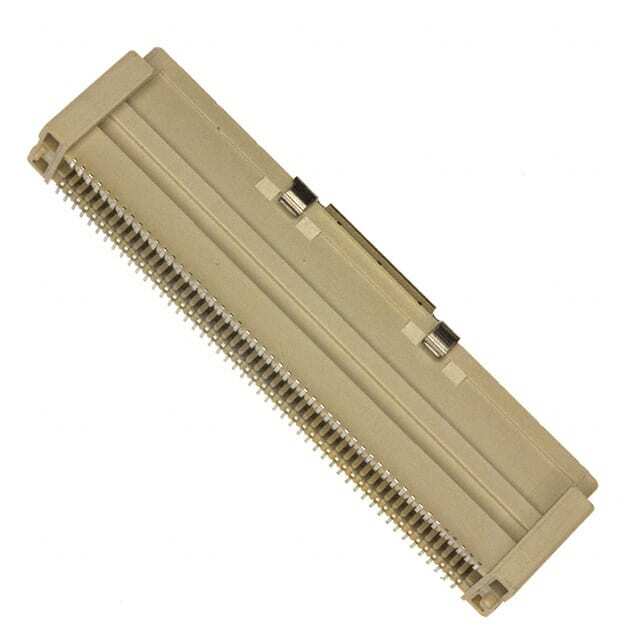

BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 100 Positions

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Fine Pitch Connector
Gender	RCP
Number of Contacts	100
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Current Rating-Max(A)	0.8/Contact
Voltage Rating-Max	100VAC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Length (mm)	45.8
Depth (mm)	6.8
Height (mm)	11.7
Tradename	Bergstak®
