54602-910LF

SKU: 107564

Manufacturer: Amphenol ICC

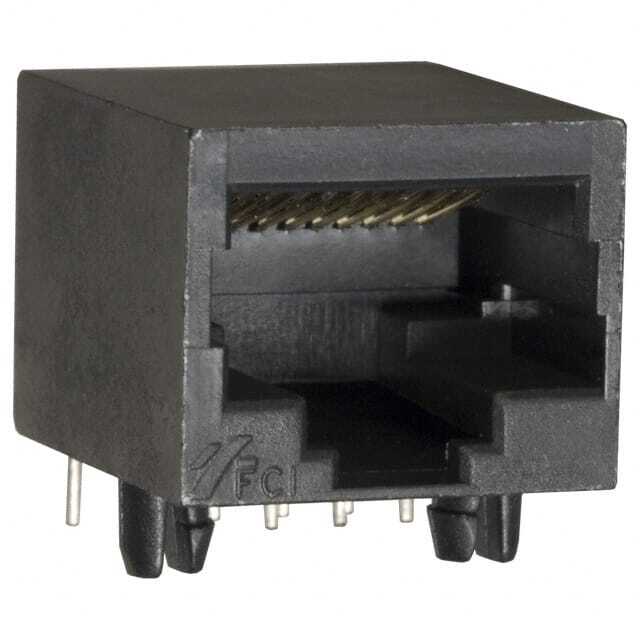

Modular Jack, Input Output Connectors, Cat 3 Single Modular Jack, Horizontal, Board Through Mount, 10P10C, 1 Port

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	Modular Jack
Gender	F
Number of Terminals	10
Number of Contacts	10
Number of Ports	1
Number of Loaded Positions	10
Category Number	Cat 3
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	1000VAC
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	20
Mating Cycle (Cycles)	500
Integrated Magnetics	No
Operating Temperature-Min	-25
Operating Temperature-Max	90
Packing Method	Box
Product Style	Single
Length (mm)	15.3
Depth (mm)	17.74
Height (mm)	12.7
