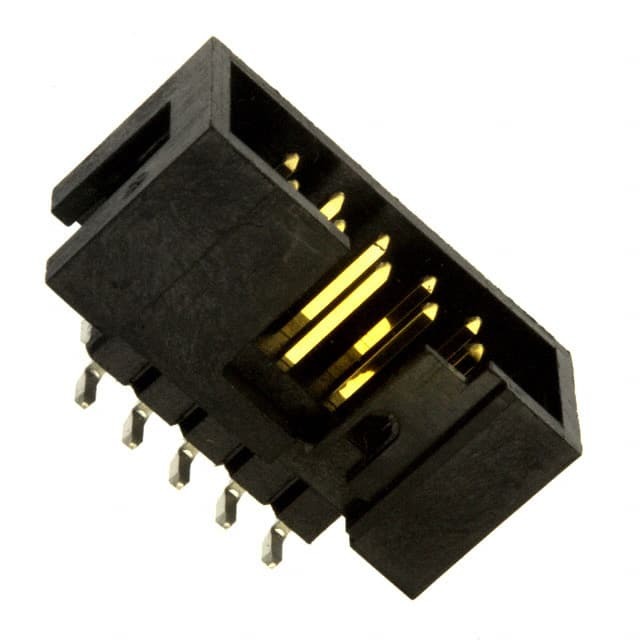

52601-S10-8LF

SKU: 150182

Manufacturer: Amphenol ICC

Quickie Header, Wire to Board Connector, Double Row, 10 Positions, 2.54 mm (0.1 in.), SMT Header 0.38 um (15 uin) Gold Mating Plating

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	10
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Center Slot
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	500VAC
Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-65
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tray
Length (mm)	20.06
Depth (mm)	8.76
Height (mm)	12.78
Tradename	Quickie®
Contact Plating Thickness	(0.38/1.27)um
