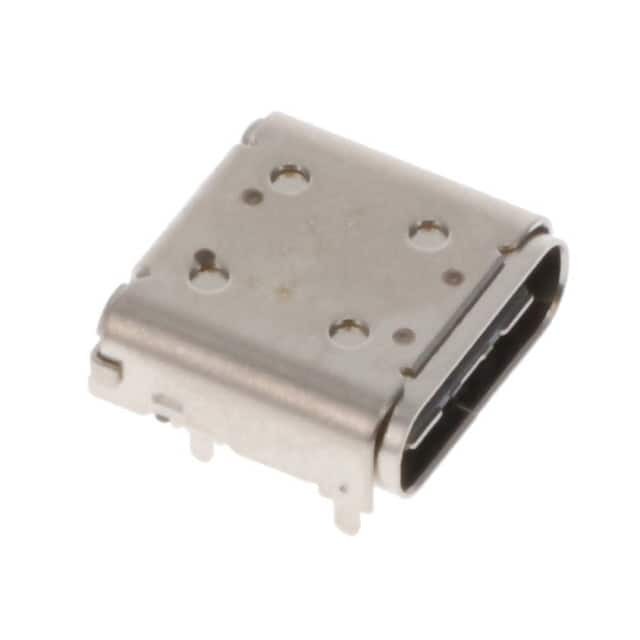

10137062-00021LF

SKU: 135871

Manufacturer: Amphenol ICC

USB3.1 GEN 1 Type C Connector, Input Output Connector, Receptacle Connector, Right Angle Top Mount SMT + DIP(Short body), 30 uin gold plating

3390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	USB 3.1 Type C
Gender	RCP
Number of Terminals	24
Number of Contacts	24
Number of Ports	1
Termination Method	Solder
Body Orientation	Right Angle
Current Rating-Max(A)	(5/1.25/0.25)/Contact
Voltage Rating-Max	100VAC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Mating Cycle (Cycles)	10000
Shell Body Material	Stainless Steel
Shell Plating	Nickel
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	9.65
Depth (mm)	8.7
Height (mm)	3.2
