10135175-05110LF Amphenol ICC

10135175-05110LF

SKU: 128742

Manufacturer: Amphenol ICC

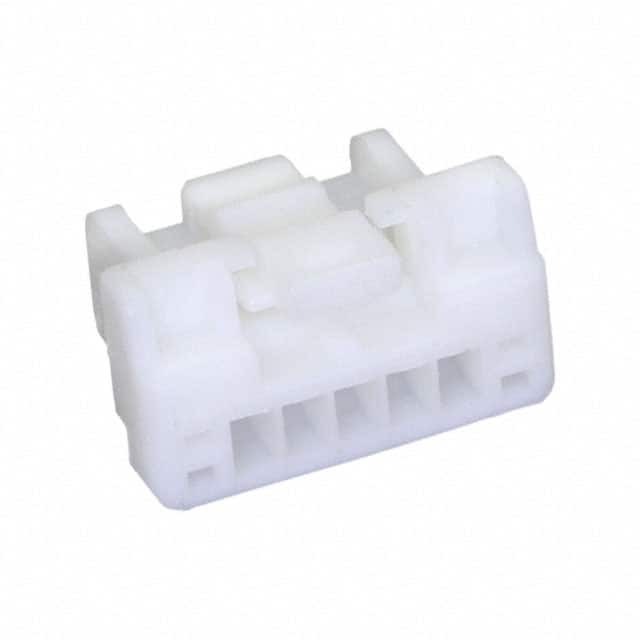

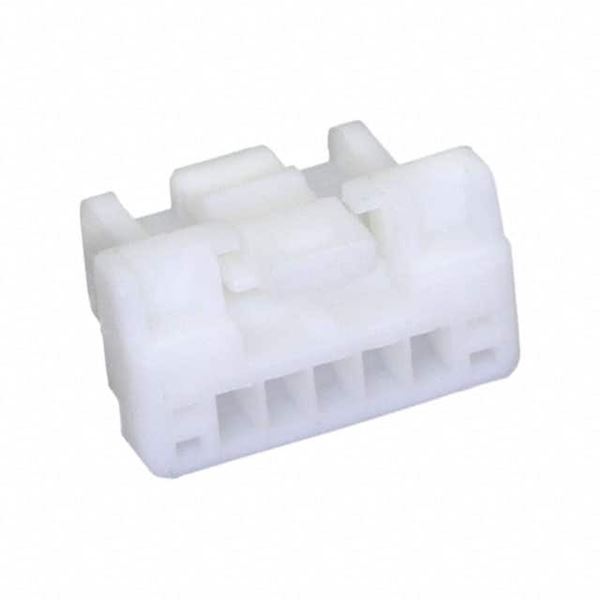

Minitek® 1.5mm Wire to Board Plug HSG, 5 positions

Download sample

Request Free Samples

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.60.00
Automotive	No
PPAP	No
Type	Housing
Gender	PL
Number of Contacts	5
Number of Rows	1
Terminal Pitch (mm)	1.5
Body Orientation	Straight
Current Rating-Max(A)	2/Contact
Voltage Rating-Max	100VDC
Insulation Resistance (MOhm)	500
Operating Temperature-Min	-25
Operating Temperature-Max	85
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Length (mm)	11.8
Depth (mm)	8.6
Height (mm)	6.1
Tradename	Minitek®
