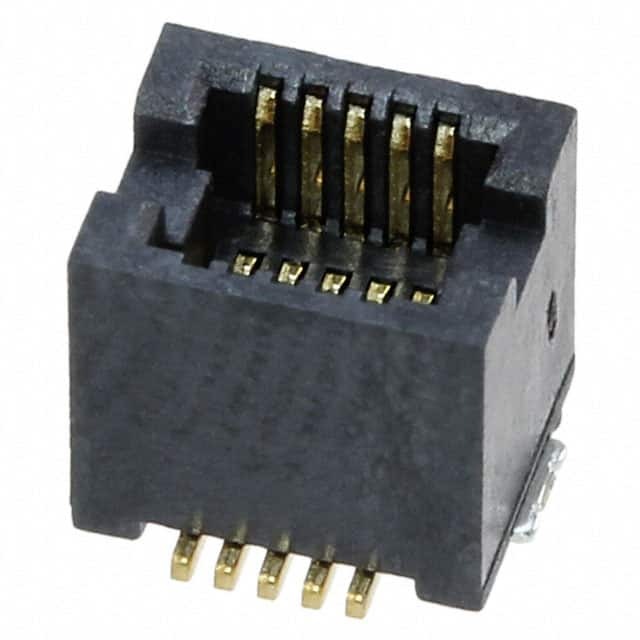

10132797-015100LF

SKU: 9087

Manufacturer: Amphenol ICC

BergStak® 0.5mm Mezzanine Connector, Board To Board Connectors, 10 position, 4.3mm height plug connector

2580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Fine Pitch Connector
Gender	HDR
Number of Contacts	10
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Straight
Row Spacing (mm)	2
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	100VAC
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	50
Packing Method	Tape and Reel
Length (mm)	5.5
Depth (mm)	4.6
Height (mm)	4.3
Tradename	Bergstak®
