10127820-0422GLF

SKU: 43940

Manufacturer: Amphenol ICC

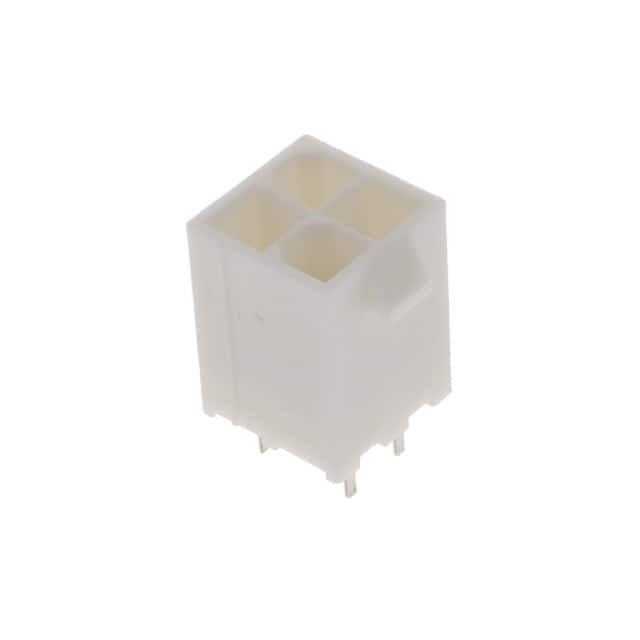

Minitek® Pwr4.2, Wire to Board Connector header, Dual row, Vertical Through hole, Tin plating, Natural Color, 4 positions, Glow Wire Compatible

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	4
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	4.2
Body Orientation	Straight
Polarization Type	Center Key
Row Spacing (mm)	4.2
Current Rating-Max(A)	8/Contact
Voltage Rating-Max	600VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tray
Length (mm)	9.6
Depth (mm)	10.95
Height (mm)	12.8
Tradename	Minitek®
Tail Length (mm)	3.5
