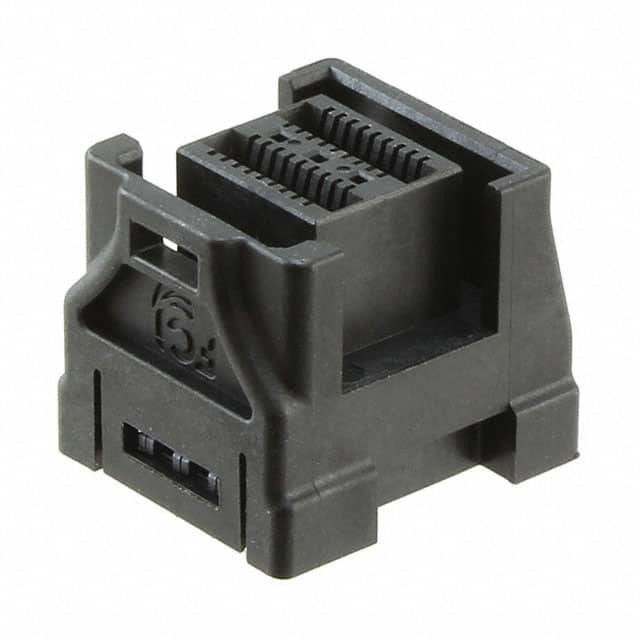

10120666-101LF

SKU: 107453

Manufacturer: Amphenol ICC

Mini-SAS HD Cable Assemblies, High Speed Input Output Connectors, 1 x 1 Internal Board Connector Assembly

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Mini-SAS
Gender	F
Number of Terminals	36
Number of Contacts	36
Number of Ports	1
Termination Method	Press Fit
Terminal Pitch (mm)	0.75
Body Orientation	Straight
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	30VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	80
Mating Cycle (Cycles)	250
Length (mm)	15.46
Depth (mm)	16.7
Height (mm)	13.83
Contact Plating	Gold Over Nickel
Contact Body Material	Copper Alloy
