10114830-10103LF

SKU: 93277

Manufacturer: Amphenol ICC

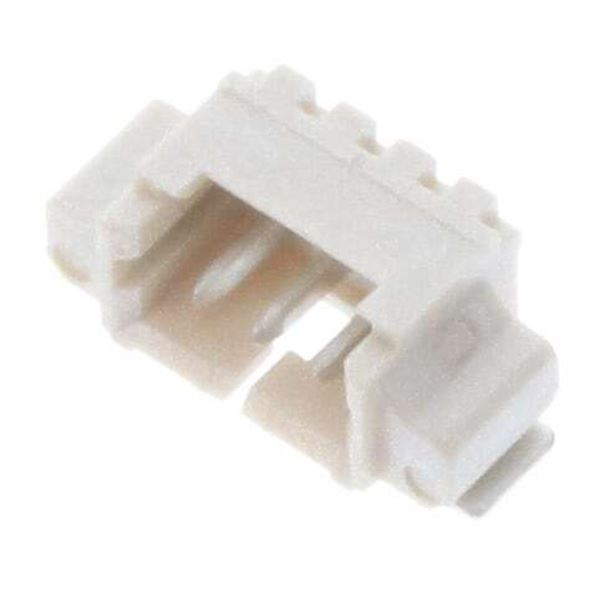

1.25mm Wire to Board Wafer, Right Angle, Surface Mount, 3 Positions

1730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	3
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	1.25
Body Orientation	Right Angle
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	125VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Length (mm)	8.9
Depth (mm)	5.3
Height (mm)	3.4
Tradename	Minitek®
