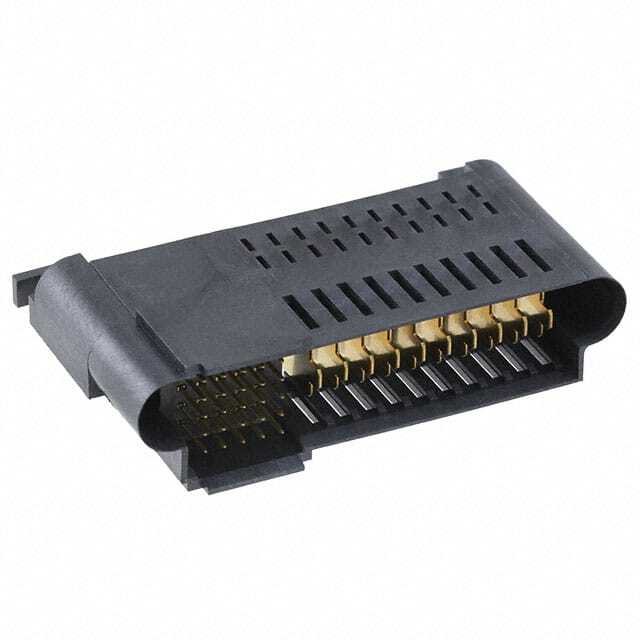

10108877-R10253SLF

SKU: 5919

Manufacturer: Amphenol ICC

PWR LowProfile® PRO,RAH,25S+10P

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Board to Board
Gender	HDR
Number of Contacts	10Power/25Signal
Number of Rows	1/5
Termination Method	Press Fit
Terminal Pitch (mm)	3.3/2
Body Orientation	Right Angle
Current Rating-Max(A)	(16/40)/Contact
Voltage Rating-Max	2500VDC/750VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	250
Packing Method	Tray
Length (mm)	51.71
Depth (mm)	32.5
Height (mm)	14
Tail Length (mm)	3.3
