10062827-0810EDLF

SKU: 15600

Manufacturer: Amphenol ICC

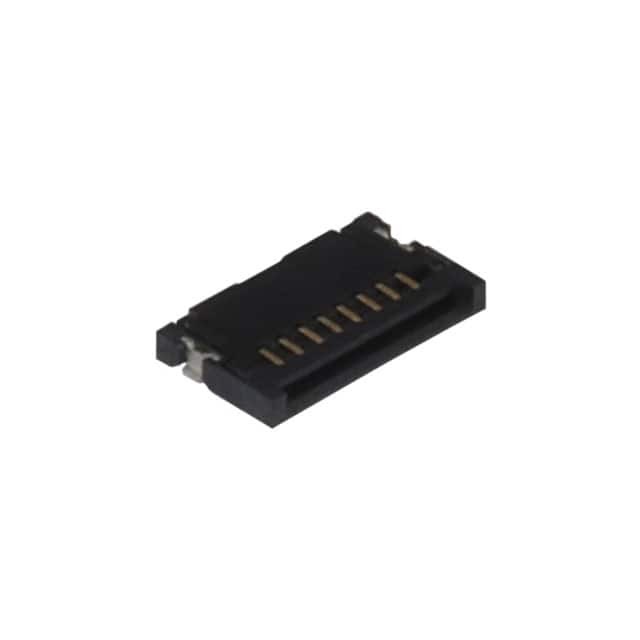

0.50mm Flex Connector, VLP Series, 8 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, 0.7mm H, Halogen Free

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	FPC Connector
Number of Contacts	8
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	0.4/Contact
Voltage Rating-Max	50VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	10
Packing Method	Tape and Reel
Length (mm)	5.5
Depth (mm)	3.4
Height (mm)	0.7
