10044471-121110LF Amphenol ICC

10044471-121110LF

SKU: 9857

Manufacturer: Amphenol ICC

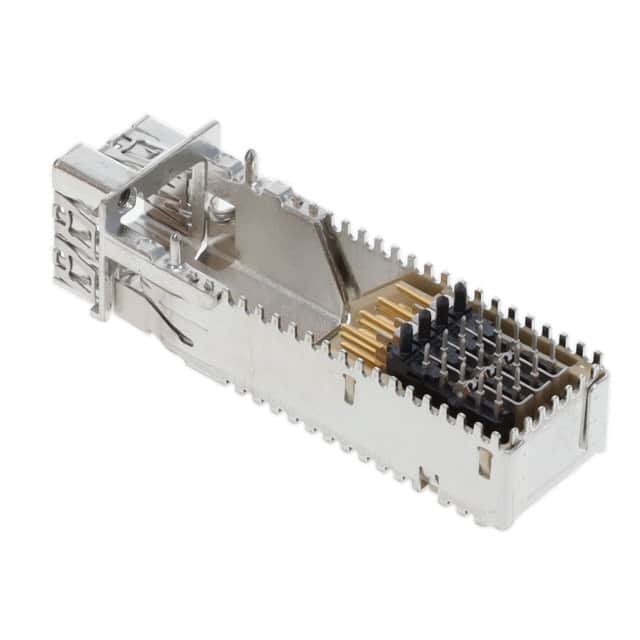

DensiShield® highspeed Cable Connector, Input Output Connector, 8 Pair High Speed PCB Header (with IMLA shields)

Download sample

Request Free Samples

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
SVHC	Yes
Automotive	No
PPAP	No
Type	DensiShield High Speed
Gender	HDR
Number of Terminals	20
Number of Contacts	16Signal/4Ground
Number of Ports	1
Number of Loaded Positions	20
Termination Method	Solder
Terminal Pitch (mm)	1.85
Body Orientation	Right Angle
Current Rating-Max(A)	0.5/Contact
Mating Cycle (Cycles)	200
Integrated Magnetics	No
Shell Body Material	Copper Alloy
Shell Plating	Tin Over Nickel
Shielding	Yes
Packing Method	Tape and Reel
Product Style	Single
Length (mm)	12.2
Depth (mm)	39
Tradename	DensiShield®
Spring Option	Yes
Tab Direction	User Selectable
Distance Between Begs (mm)	10
