10030570-2112LF

SKU: 9491

Manufacturer: Amphenol ICC

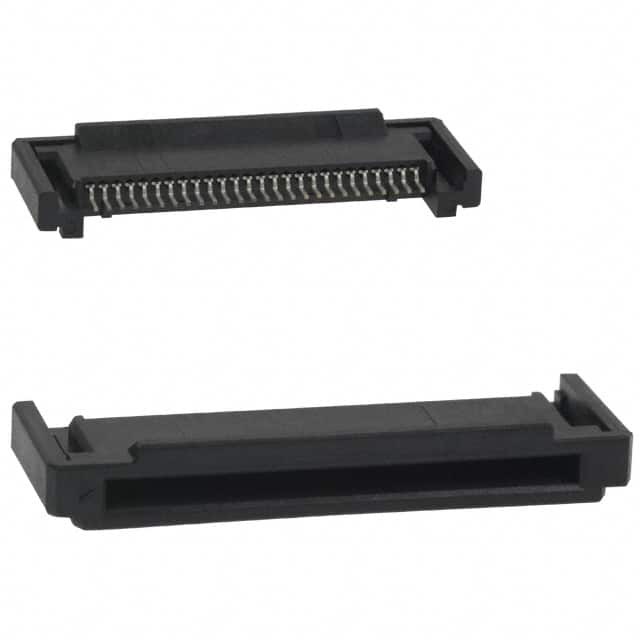

Conn Card Edge RCP 26 POS 1mm Solder RA SMD T/R

3850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Card Edge
Gender	RCP
Card Type	Single Edge
Number of Contacts	26
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	1
Body Orientation	Right Angle
Current Rating-Max(A)	0.75/Contact
Voltage Rating-Max	3.3V
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	40
Operating Temperature-Min	-20
Operating Temperature-Max	65
Packing Method	Tape and Reel
Length (mm)	34
Depth (mm)	11
Height (mm)	5
