10029364-001TRLF

SKU: 7126

Manufacturer: Amphenol ICC

SATA, Storage and Server Connector, Receptacle, Right Angle, Surface Mount, 22 Positions

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.51
SVHC	Yes
Automotive	No
PPAP	No
Type	SATA
Gender	F
Number of Terminals	22
Number of Contacts	15Power/7Signal
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	500VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	15
Mating Cycle (Cycles)	500
Packing Method	Tape and Reel

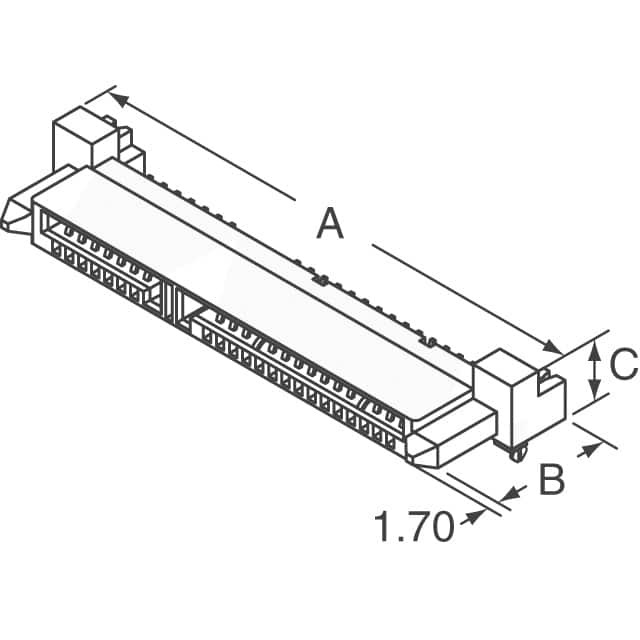

Length (mm)	42.4
Depth (mm)	12.4
Height (mm)	5.42
Terminal Form	Surface Mount
Contact Plating	Gold Over Nickel
