10029065-001LF

SKU: 5052

Manufacturer: Amphenol ICC

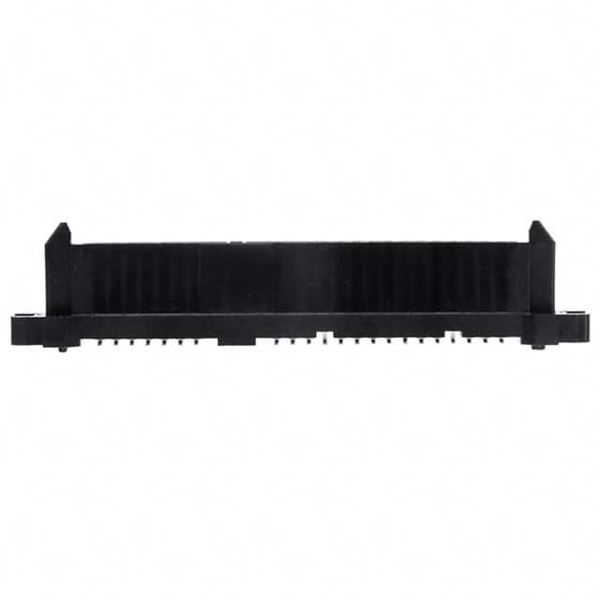

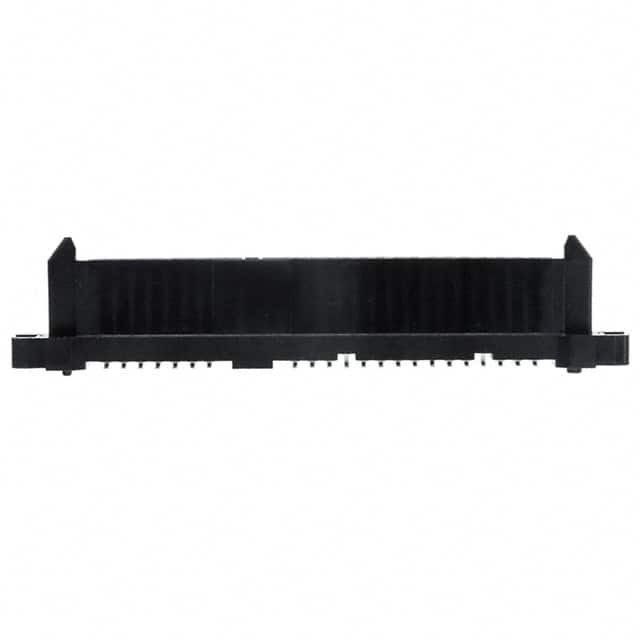

SATA, Storage and Server Connector, Receptacle, Vertical, Surface Mount, 22 Positions

Download sample

Request Free Samples

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

Amphenol ICC 10029065-001LF is available at WIN SOURCE. Please review product page below for detailed information, including 10029065-001LF price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 10029065-001LF to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	SATA
Gender	RCP
Number of Terminals	22
Number of Contacts	15Power/7Signal
Number of Ports	1
Termination Method	Solder
Body Orientation	Straight
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	500VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Max	260
Mating Cycle (Cycles)	500
Packing Method	Tray
Length (mm)	45.75
Depth (mm)	5.5
Height (mm)	9.85
Terminal Form	Surface Mount
Contact Plating	Gold Over Nickel
