10018784-10002TLF

SKU: 6208

Manufacturer: Amphenol ICC

Conn PCI Express Card Edge SKT 98 POS 2mm Solder ST Thru-Hole Tray

3300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	PCI Express Card Edge
Gender	SKT
Card Type	PCI
Card Thickness (mm)	1.57
Number of Contacts	98
Number of Rows	2
Termination Method	Solder
Contact Type	Cantilever Bellows
Terminal Pitch (mm)	2
Body Orientation	Straight
Mounting Styles	Plastic Locating Post
Current Rating-Max(A)	1.1/Contact
Voltage Rating-Max	300VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	40
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	50
Packing Method	Tray

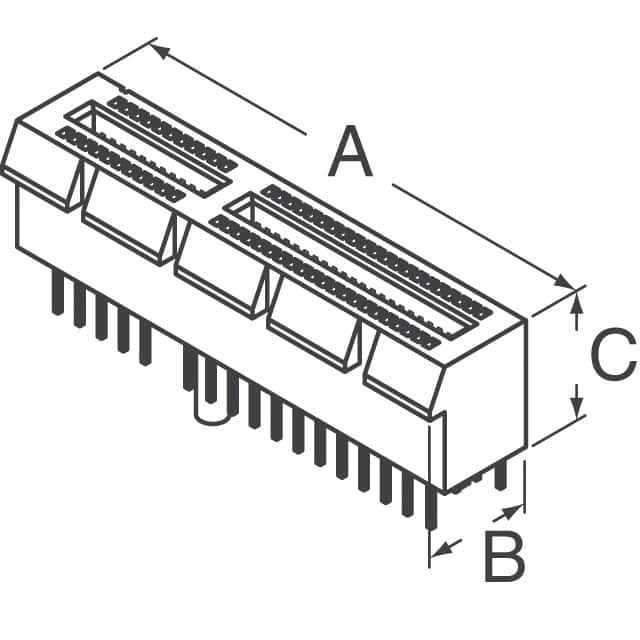

Length (mm)	56
Depth (mm)	8.8
Height (mm)	11.25
Tail Cross Section (mm)	0.35x0.25
Tail Length (mm)	2.3
