10018783-10113TLF

SKU: 143003

Manufacturer: Amphenol ICC

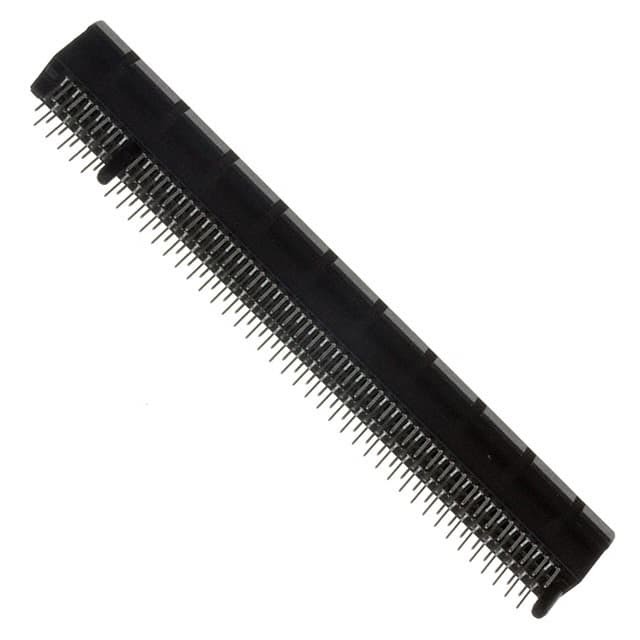

PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Through Hole, x16, 164 Positions, 1.00mm (0.039in) Pitch

3310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	PCI Express Card Edge
Gender	SKT
Card Type	PCI
Card Thickness (mm)	1.57
Number of Contacts	164
Number of Rows	2
Termination Method	Solder
Contact Type	Cantilever Bellows
Terminal Pitch (mm)	2
Body Orientation	Straight
Mounting Styles	Plastic Locating Post
Current Rating-Max(A)	1.1/Contact
Voltage Rating-Max	300VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	40
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	50
Packing Method	Tray
Length (mm)	89
Depth (mm)	8.8
Height (mm)	11.25
Tail Cross Section (mm)	0.35x0.25
Tail Length (mm)	3.1
Tradename	PCI Express®
