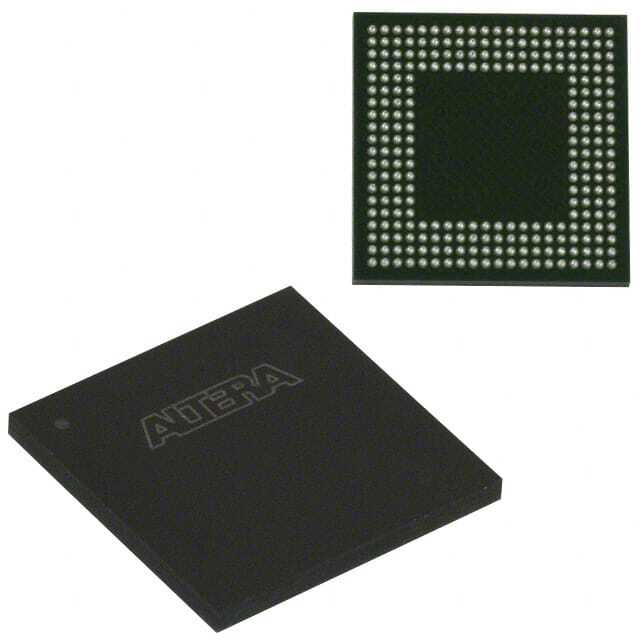

EPM7512BBC256-7

SKU: 108055

Manufacturer: Altera/Intel Programmable Solutions

CPLD MAX® 7000B Family 10K Gates 512 Macro Cells 119MHz 2.5V 256-Pin BGA Tray

2580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	MAX® 7000B
Program Memory Type	EEPROM
Number of Logic Blocks/Elements	32
Number of Global Clocks	2
Number of I/O Banks	2
Number of Macro Cells	512
Product Terms	32
Device System Gates	10000
Data Gate	No
Maximum Number of User I/Os	212
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	166.67
Maximum Clock to Output Delay (ns)	5
Maximum Propagation Delay Time (ns)	7.5
Speed Grade	7
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	2.625
Typical Operating Supply Voltage (V)	2.5
I/O Voltage (V)	1.8
Tolerant Configuration Interface Voltage (V)	1.8
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	MAX
Original Package	BGA
Pin Count	256
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	27
Package Width	27
PCB changed	256
