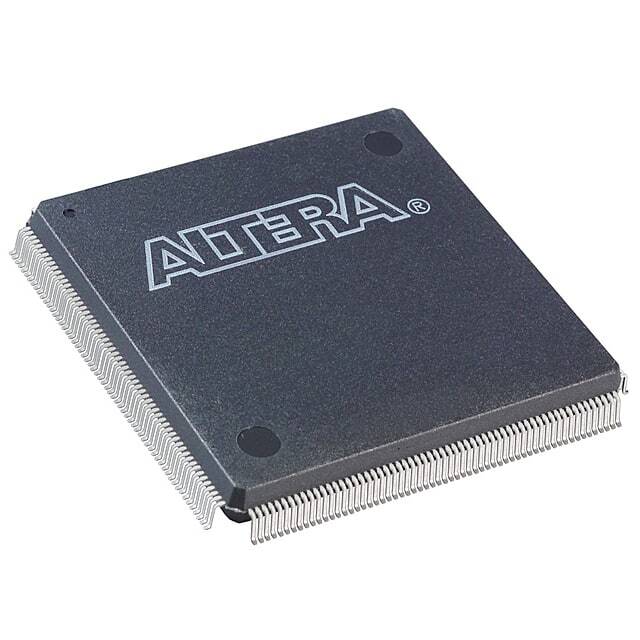

EP20K100EQC240-3

SKU: 110658

Manufacturer: Altera/Intel Programmable Solutions

FPGA APEX 20K Family 100K Gates 4160 Cells 250MHz 0.22um Technology 1.8V 240-Pin PQFP

400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	APEX 20K
Process Technology	0.22um
User I/Os	183
Number of I/O Banks	8
Operating Supply Voltage (V)	1.8
Logic Elements	4160
Device System Gates	263000
Program Memory Type	SRAM
Embedded Memory (Kbit)	52
Total Number of Block RAM	26
Device Logic Gates	100000
Device Logic Units	4160
Number of Global Clocks	8
Device Number of DLLs/PLLs	2
Programmability	No
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	250
In-System Programmability	No
Speed Grade	3
Differential I/O Standards	AGP
Single-Ended I/O Standards	LVCMOS
Maximum I/O Performance	840Mbps
External Memory Interface	ZBT SRAM
Operating Supply Voltage-Min (V)	1.71
Operating Supply Voltage-Max (V)	1.89
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	APEX
Original Package	PQFP
Pin Count	240
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	3.4
Package Length	32
Package Width	32
PCB changed	240
