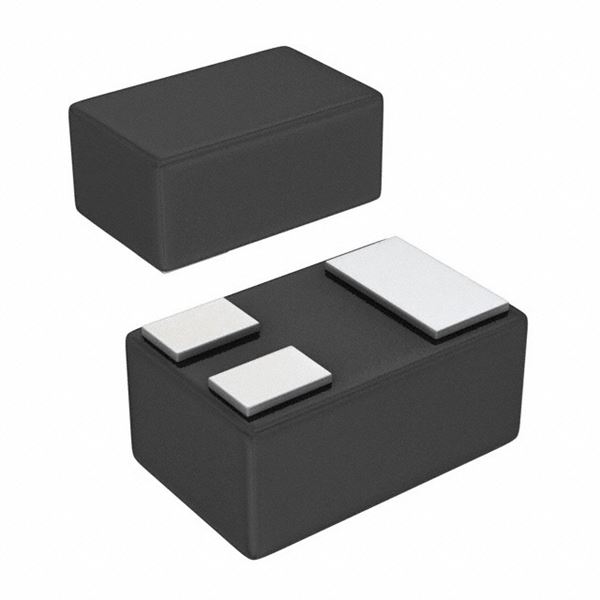

AOZ8832DI-05

SKU: 46171

Manufacturer: Alpha and Omega Semiconductor

ESD Suppressor Diode TVS Bi-Dir 5V 3-Pin DFN T/R

2630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Type	TVS
Configuration	Dual
Direction Type	Bi-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	10
Maximum Clamping Voltage (V)	20
Maximum Peak Pulse Current (A)	2
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.49
Package Length	1
Package Width	0.6
