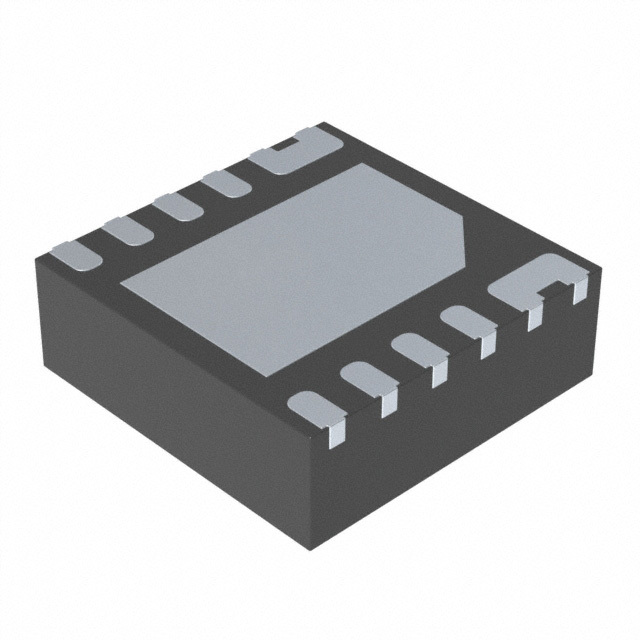

AOZ1375DI-02

SKU: 107789

Manufacturer: Alpha and Omega Semiconductor

USB Power Switch Single 23V 2.35A/3.4A/5.3A 12-Pin DFN EP T/R

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Type	USB Power Switch
Number of Switches	1
Current Limit (A)	5.3
Minimum Input Voltage (V)	3.4
Maximum Input Voltage (V)	23
Number of Outputs	1
Operating Supply Voltage Range (V)	3.4 to 23
Switch On Resistance (mOhm)	18.2
Typical UVLO Threshold (V)	3.35(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Typical Turn-On Delay Time (us)	1600
Typical Rise Time (us)	400
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	12
Terminal Form	Surface Mount
Package Height	0.88
Package Length	3
Package Width	3
