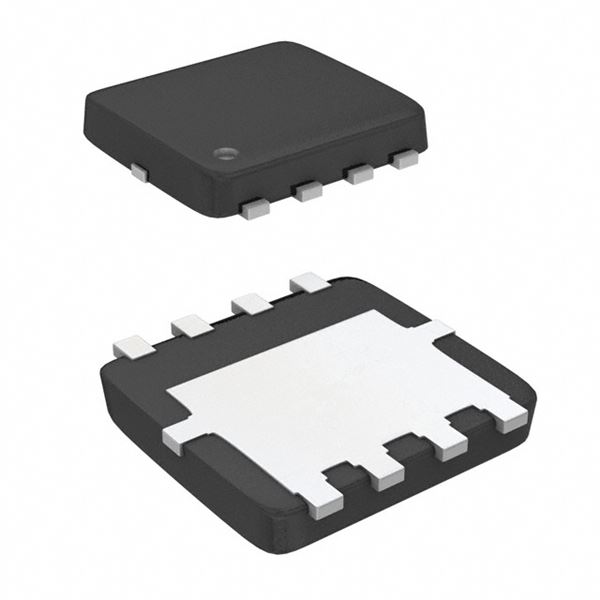

AON7401

SKU: 39041

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET P-CH 30V 35A 8-Pin DFN-A EP

4340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±25
Maximum Continuous Drain Current (A)	35
Maximum Drain Source Resistance (mOhm)	14@10V
Typical Gate Charge @ Vgs (nC)	30@10V
Typical Gate Charge @ 10V (nC)	30
Typical Input Capacitance @ Vds (pF)	2060@15V
Maximum Power Dissipation (mW)	29000
Typical Fall Time (ns)	12
Typical Rise Time (ns)	9.4
Typical Turn-Off Delay Time (ns)	24
Typical Turn-On Delay Time (ns)	11
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	DFN-A EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.78
Package Length	3
Package Width	3
