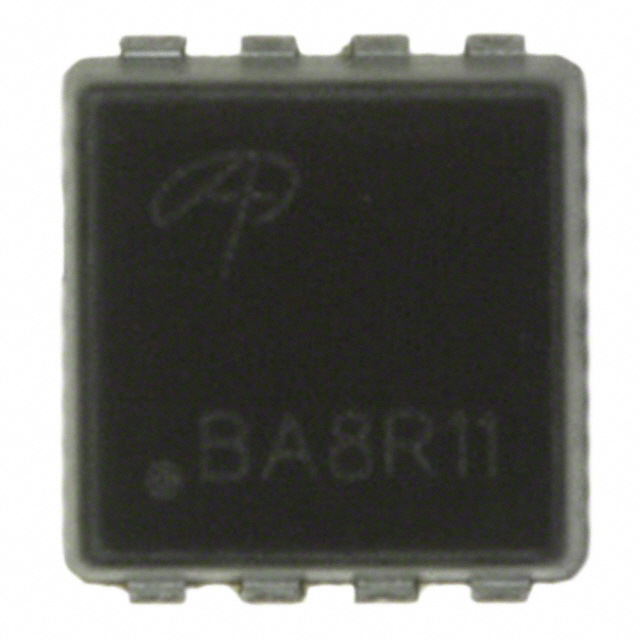

    AON6590

    SKU: 116748
    Trans MOSFET N-CH 40V 100A 8-Pin DFN EP T/R
    5780 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    Automotive Unknown
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Single Quad Drain Triple Source
    Process Technology TMOS
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 40
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 2.3
    Maximum Continuous Drain Current (A) 100
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 0.99@10V
    Typical Gate Charge @ Vgs (nC) 100@10V
    Typical Gate Charge @ 10V (nC) 100
    Typical Input Capacitance @ Vds (pF) 8320@20V
    Maximum Power Dissipation (mW) 208000
    Typical Fall Time (ns) 10
    Typical Rise Time (ns) 7
    Typical Turn-Off Delay Time (ns) 69
    Typical Turn-On Delay Time (ns) 19
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package DFN EP
    Pin Count 8
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.95(Max)
    Package Length 5.2
    Package Width 5.55
    PCB changed 8
