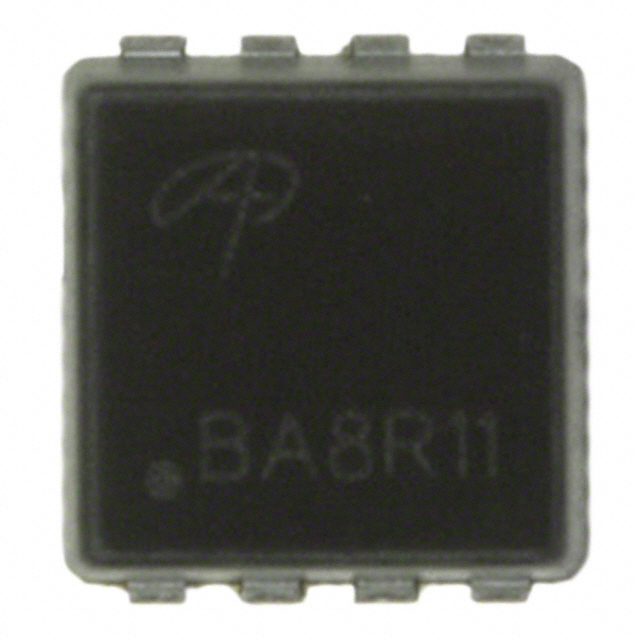

AON6405

SKU: 145122

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET P-CH 30V 30A 8-Pin DFN EP T/R

8670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.29.00.95
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	30
Maximum Drain Source Resistance (mOhm)	5.2@10V
Typical Gate Charge @ Vgs (nC)	46@4.5V
Typical Gate Charge @ 10V (nC)	93
Typical Input Capacitance @ Vds (pF)	5020@15V
Maximum Power Dissipation (mW)	104000
Typical Fall Time (ns)	830
Typical Rise Time (ns)	280
Typical Turn-Off Delay Time (ns)	1400
Typical Turn-On Delay Time (ns)	180
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.2
Package Width	5.55
PCB changed	8
