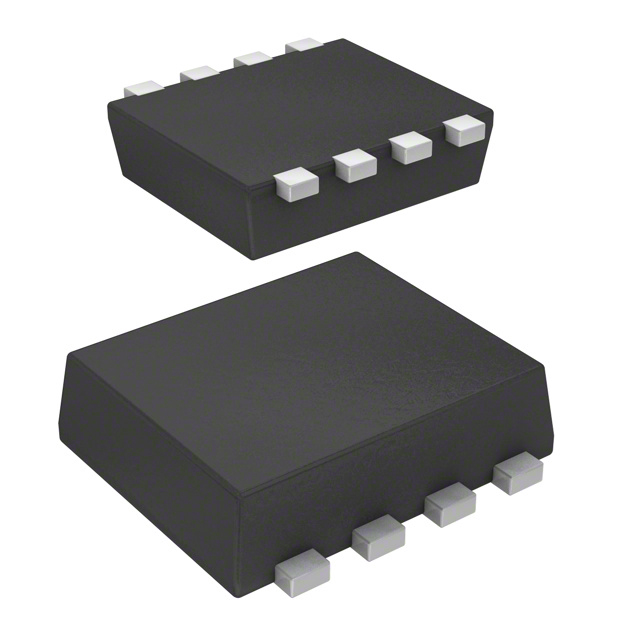

AON3611

SKU: 60395

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET N/P-CH 30V 5A/6A 8-Pin DFN

34020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Dual Dual Drain
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	5@N Channel
Maximum Drain Source Resistance (mOhm)	38@10V@P Channel
Typical Gate Charge @ Vgs (nC)	2@4.5V@N Channel
Typical Gate Charge @ 10V (nC)	4.05@N Channel
Typical Input Capacitance @ Vds (pF)	520@15V@P Channel
Maximum Power Dissipation (mW)	2100@N Channel
Typical Fall Time (ns)	15.5@N Channel
Typical Rise Time (ns)	5.5@P Channel
Typical Turn-Off Delay Time (ns)	18.5@N Channel
Typical Turn-On Delay Time (ns)	4.5@N Channel
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	DFN
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	2.9
Package Width	2.3
