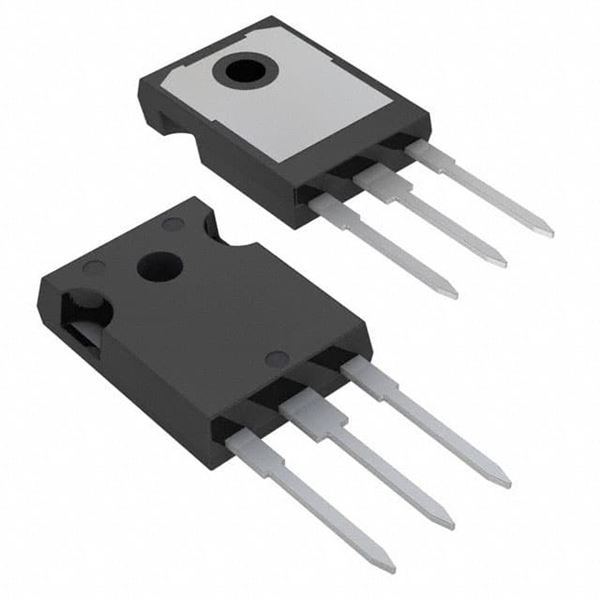

AOK30B60D

SKU: 145121

Manufacturer: Alpha and Omega Semiconductor

Trans IGBT Chip N-CH 600V 60A 278000mW 3-Pin(3+Tab) TO-247 Tube

3580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.6
Maximum Continuous Collector Current (A)	60
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	278000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21
Package Length	15.8
Package Width	5
PCB changed	3
Tab	Tab
