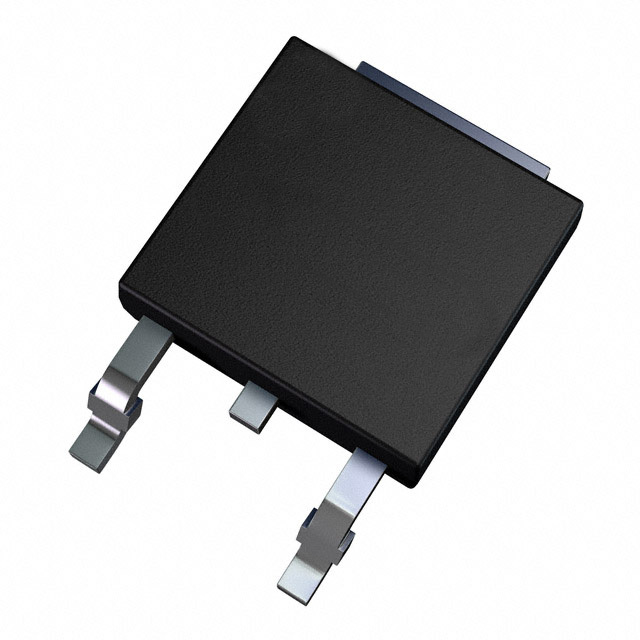

    AOD472

    SKU: 109638
    Trans MOSFET N-CH 25V 55A 3-Pin(2+Tab) DPAK
    5250 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Unconfirmed
    HTS 8541.10.00.80
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Unknown
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 25
    Maximum Gate Source Voltage (V) ±20
    Maximum Continuous Drain Current (A) 55
    Maximum Drain Source Resistance (mOhm) 6@10V
    Typical Gate Charge @ Vgs (nC) 20@4.5V
    Typical Gate Charge @ 10V (nC) 41
    Typical Input Capacitance @ Vds (pF) 2050@12.5V
    Maximum Power Dissipation (mW) 2500
    Typical Fall Time (ns) 8
    Typical Rise Time (ns) 11
    Typical Turn-Off Delay Time (ns) 27
    Typical Turn-On Delay Time (ns) 7.5
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Original Package DPAK
    Pin Count 3
    Standard Package Method TO-252
    Terminal Form Surface Mount
    Package Height 2.29
    Package Length 6.6
    Package Width 6.1
    PCB changed 2
