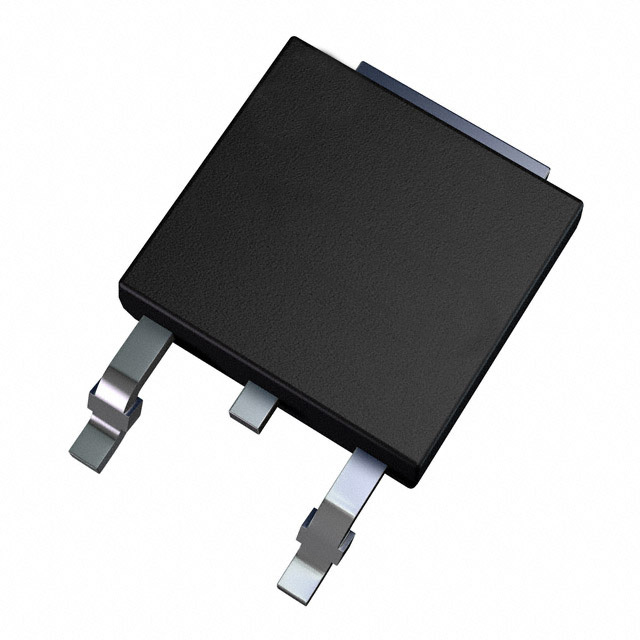

AOD409

SKU: 39039

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET P-CH 60V 26A 3-Pin(2+Tab) DPAK T/R

41500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.4
Operating Junction Temperature (°C)	-55 to 175
Maximum Continuous Drain Current (A)	26
Maximum Drain Source Resistance (mOhm)	40@10V
Typical Gate Charge @ Vgs (nC)	44@10V
Typical Gate Charge @ 10V (nC)	44
Typical Input Capacitance @ Vds (pF)	2977@30V
Maximum Power Dissipation (mW)	60000
Typical Fall Time (ns)	15
Typical Rise Time (ns)	14.5
Typical Turn-Off Delay Time (ns)	38
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Diode Forward Voltage (V)	1
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.29
Package Length	6.6
Package Width	6.1
PCB changed	2
