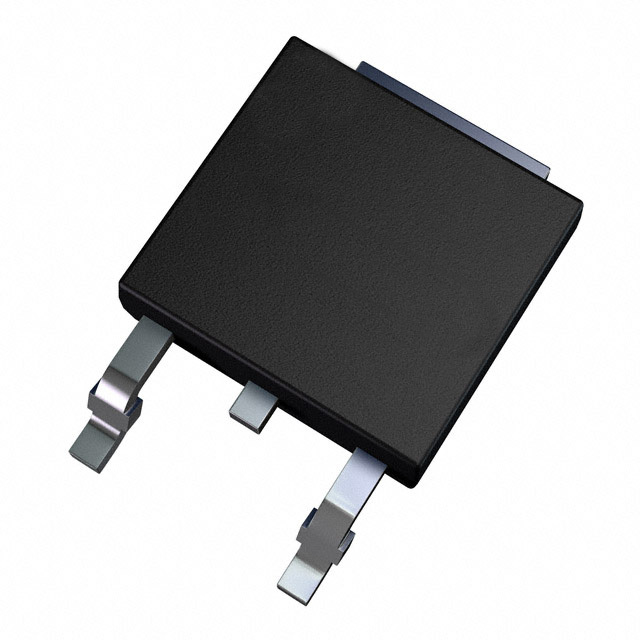

AOD254

SKU: 24812

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET N-CH 150V 4.5A 3-Pin(2+Tab) DPAK

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	150
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.7
Maximum Continuous Drain Current (A)	4.5
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	46@10V
Typical Gate Charge @ Vgs (nC)	12@4.5V
Typical Gate Charge @ 10V (nC)	27
Typical Input Capacitance @ Vds (pF)	2150@75V
Maximum Power Dissipation (mW)	100000
Typical Fall Time (ns)	4
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	29
Typical Turn-On Delay Time (ns)	9
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.29
Package Length	6.6
Package Width	6.1
PCB changed	2
