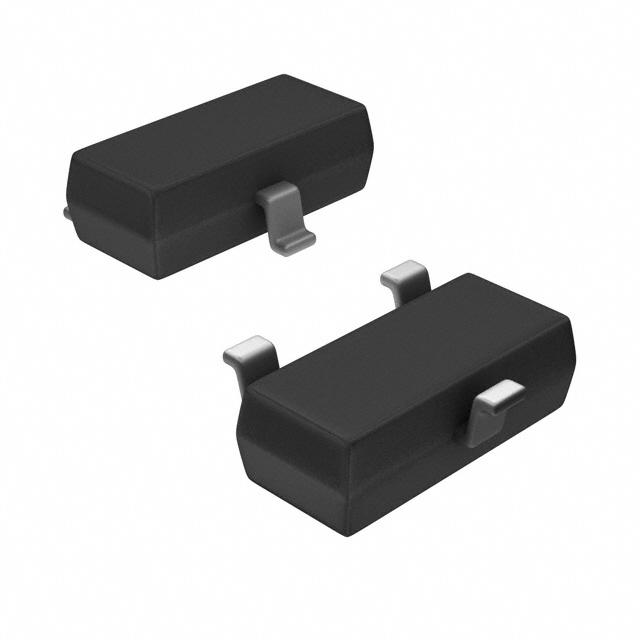

AO7400

SKU: 88401

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET N-CH 30V 1.7A 3-Pin SC-70

4810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.10.00.80
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.4
Maximum Continuous Drain Current (A)	1.7
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	55@10V
Typical Gate Charge @ Vgs (nC)	10@10V
Typical Gate Charge @ 10V (nC)	10
Typical Input Capacitance @ Vds (pF)	235@15V
Maximum Power Dissipation (mW)	350
Typical Fall Time (ns)	2.5
Typical Rise Time (ns)	1.5
Typical Turn-Off Delay Time (ns)	17.5
Typical Turn-On Delay Time (ns)	3.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SC-70
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2.1
Package Width	1.3
