    AO3407

    SKU: 46165

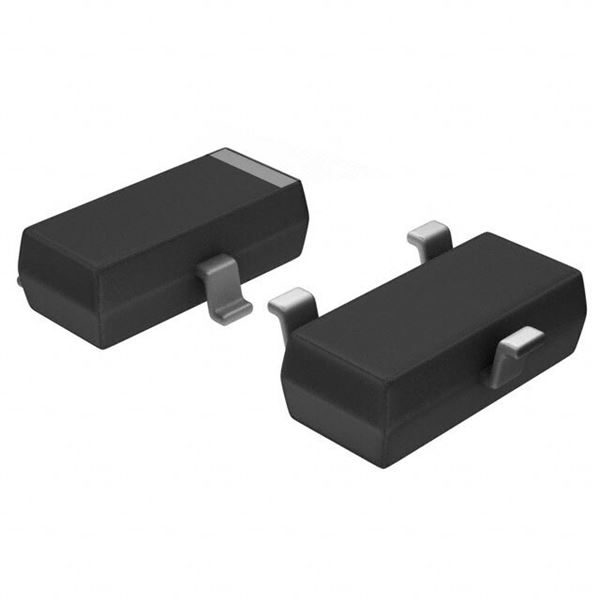

    Trans MOSFET P-CH 30V 4.1A 3-Pin SOT-23
    786930 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive Unknown
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 30
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 2.4
    Maximum Continuous Drain Current (A) 4.1
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 52@10V
    Typical Gate Charge @ Vgs (nC) 4.6@4.5V
    Typical Gate Charge @ 10V (nC) 9.2
    Typical Input Capacitance @ Vds (pF) 520@15V
    Maximum Power Dissipation (mW) 1400
    Typical Fall Time (ns) 7
    Typical Rise Time (ns) 5.5
    Typical Turn-Off Delay Time (ns) 19
    Typical Turn-On Delay Time (ns) 7.5
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Original Package SOT-23
    Pin Count 3
    Standard Package Method SOT
    Terminal Form Surface Mount
    Package Height 1
    Package Length 2.9
    Package Width 1.6
    PCB changed 3
