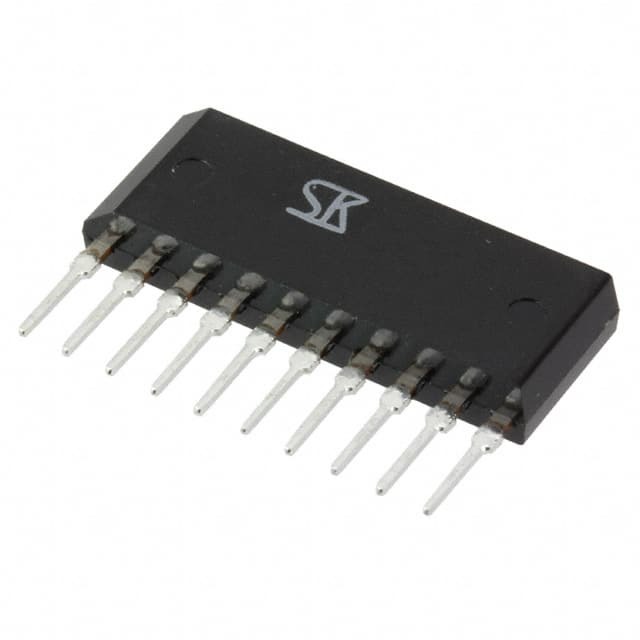

STA403A

SKU: 127957

Manufacturer: Allegro MicroSystems

Trans Darlington NPN 100V 4A 4000mW 10-Pin SIP

80 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	NPN
Configuration	Quad
Number of Elements per pcs	4
Collector-Emitter Voltage-Max (V)	100
Collector Base Voltage-Max (V)	120
Maximum Emitter Base Voltage (V)	6
Maximum Continuous DC Collector Current (A)	4
Maximum Collector Cut-Off Current (uA)	100
Maximum Collector-Emitter Saturation Voltage (V)	2@10mA@2A
Minimum DC Current Gain	1000@2A@4V
Maximum Power Dissipation (mW)	4000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	SIP
Pin Count	10
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	9
Package Length	25.25
Package Width	4
PCB changed	10
