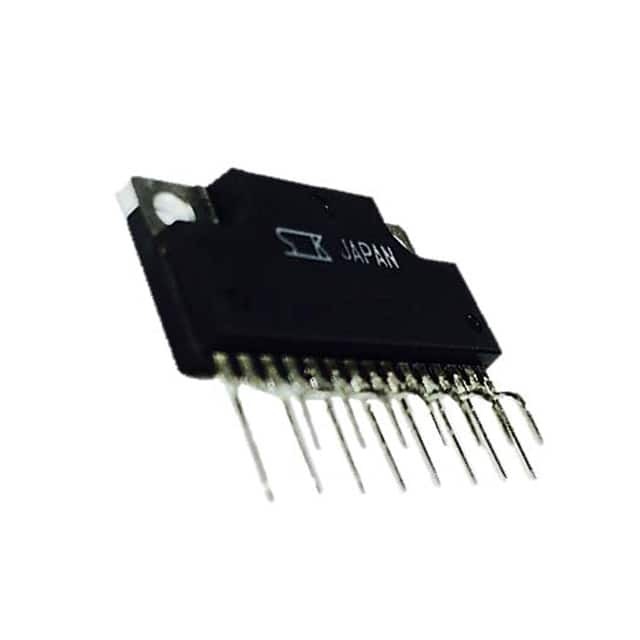

SLA5073

SKU: 70982

Manufacturer: Allegro MicroSystems

Trans MOSFET N-CH 60V 5A 15-Pin(15+Tab) SIP

1380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Hex
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	6
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2
Maximum Continuous Drain Current (A)	5
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	100
Maximum Drain Source Resistance (mOhm)	300@4V
Typical Input Capacitance @ Vds (pF)	320@10V
Maximum Power Dissipation (mW)	5000
Typical Fall Time (ns)	45
Typical Rise Time (ns)	65
Typical Turn-Off Delay Time (ns)	70
Typical Turn-On Delay Time (ns)	16
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	SIP
Pin Count	15
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	16
Package Length	31.3
Package Width	4.8
PCB changed	15
Tab	Tab
