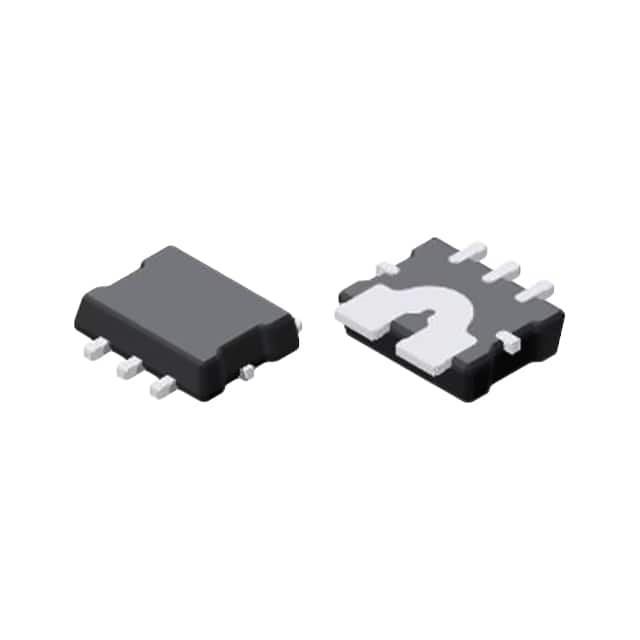

ACS780LLRTR-050B-T

SKU: 24496

Manufacturer: Allegro MicroSystems

Current Sensor Current Sensor AC/DC Current 5V Automotive 7-Pin PSOF T/R

3040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Module/IC Classification	IC
Sensing Current Type	AC
Typical RMS Primary Current (A)	±50
Accuracy (%)	±1.5
Typical Response Time (us)	3.6
Maximum Output Voltage (V)	25
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Sensitivity (mV/A)	40
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PSOF
Pin Count	7
Terminal Form	Surface Mount
Package Height	1.48
Package Length	6.4
Package Width	4.8
