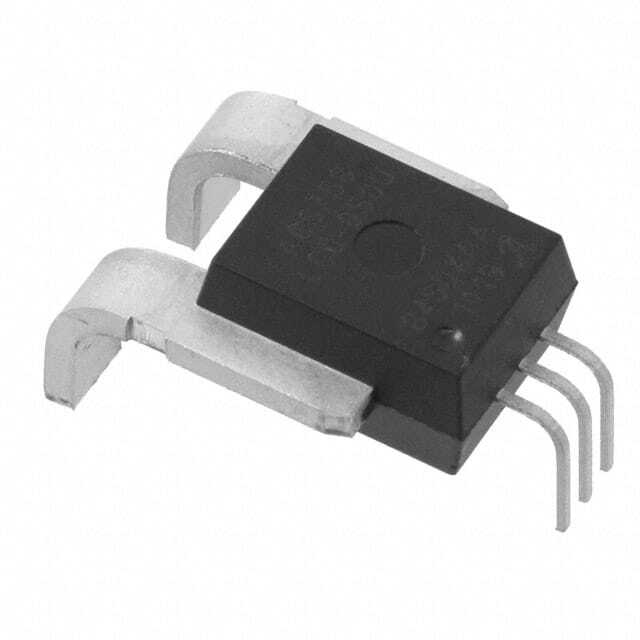

ACS758KCB-150B-PFF-T

SKU: 17477

Manufacturer: Allegro MicroSystems

Open Loop Current Sensor AC/DC Current 5V Automotive 5-Pin Case CB-PFF Tube

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Open Loop
Module/IC Classification	IC
Sensing Current Type	AC
Typical RMS Primary Current (A)	±150
Accuracy (%)	1.6
Typical Response Time (us)	4
Maximum Output Voltage (V)	28
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Sensitivity (mV/A)	13.3
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	5
Standard Package Method	Case CB-PFF
Original Package	Case CB-PFF
Terminal Form	Through Hole
Package Height	7
Package Length	10
Package Width	13
PCB changed	5
