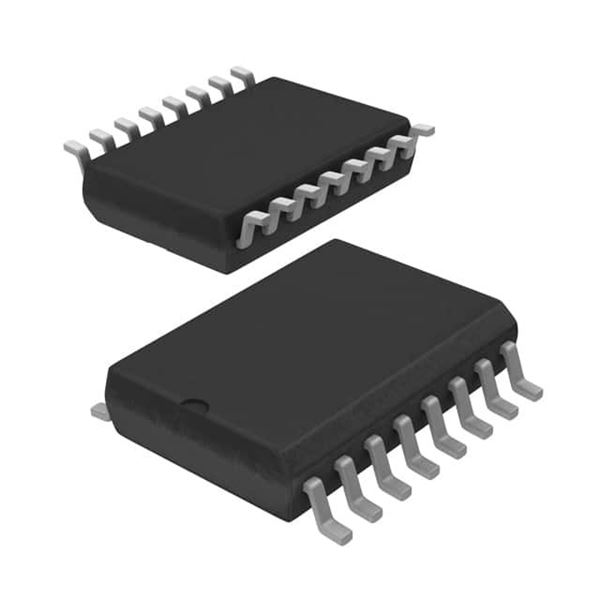

ACS724LMATR-20AB-T

SKU: 150235

Manufacturer: Allegro MicroSystems

Closed Loop/Open Loop Current Sensor AC/DC Current 5V 16-Pin SOIC W T/R

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Type	Closed Loop
Module/IC Classification	IC
Sensing Current Type	AC
Typical RMS Primary Current (A)	±20
Accuracy (%)	±2.7
Typical Response Time (us)	4
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Sensitivity (mV/A)	100
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	SOIC W
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.3
Package Width	7.5
